Galvanized Steel Wires Catalog

We have advanced imported equipment, annual production capacity is 500,000 tons. Firstlin is ISO9001-2008 certified, SGS, BV certified.

Since our start in 1998, Firstlin has established very good business relationships with our importers, wholesalers, customers in the world.

If you have any question, please feel free to contact me. Your inquiry or requirements will get our prompt attention.

Zinc Plated / Hot-dip Galvanized Iron Wire

Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling.

Size range: BWG 8-BWG 22
Zinc coat: 45-180g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%

Galvanized wire hot dipped galv. is mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging, binding and other daily uses.

Electro Galvanized Iron Wire

Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Size range: BWG 8-BWG 22, or BWG 8-BWG 28
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%

Electric galv. wire is mainly used in construction, express way fencing, binding, tying and wire mesh weaving.

Electro Galvanized Wire specifications:

Wire Gauge SWG(mm) BWG(mm)
14 2.03 2.11
16 1.63 1.65
18 1.22 1.25
20 0.91 0.84
22 0.71 0.71

14-gauge galvanized wire is suitable for binding construction materials, twisting ties.
12-gauge galvanized steel wire is suitable for making corrosion-resistant wire products and fencing wires.

Construction Binding Wire

21 gauge binding wire for construction rebar tying

Galvanized Iron Wire BWG 21 used for Construction as Binding Wire. Hot dip galvanized wires dia 3.25 mm, zinc 100g, strength tensile 160 kg.
In 25kg/roll, packed with pvc inner and hessian outer.

Soft Annealed Black Binding Wire

Soft black annealed binding wire, diameter 0.16mm, strength 0.6mm, packing in 30-40 kg coils,used in construction.
Black annealed binding wire BWG19 for construction, soft annealed black wire gauge #14, 16 & 18 also popular for binding in construction.

Galvanized Oval Wire

Galvanized oval wire 2.4*3.0 mm, 45# steel, min.60g/mm2 hot dipped zinc galv.
High quality galvanized oval steel wire in coils, made of carbon steel, with the following specifications:

Galvanized Steel Oval Wire
Caliber: 17/15 Diameter: (2.4mm x 3.0mm)
Weigth per coil: 43kg
Lenght per coil: 1000m
Zinc coating: 60g/m2 Min.
Resistance: 725 kgf
Raw material 45# steel
Tensile strength: from 1000n/mm2-1200n/mm2.

Gauge Coil Weight (kg) Coil Length (m) Nominal Diameter (mm) Coating Amount of Zinc (g/m2) Breaking Load (kg)
16/14 43 1250 2, 2/2, 7 120 600

Twist Ties

Plastic coated iron twisted wire ties, 21 gauge, 140mm cut length
Twist Tie (Cut Length- 140 mm), double wire plastic twist tie, plastic coated 21g ties.

Vinyl coated twist ties
Length: 100mm & 120mm
color: red, green, blue, yellow, black, white

Twist ties in green plastic:
Twist ties green plastic coated, cutted size 12, 15, 20, 30 cm, packed 1000pcs/bundle.
Packed in 250m rolls.
Twist ties green plastic coated, in length 20cm, packed 100pcs/plastic bag with hang tag.
Twist ties green plastic coated, in 30m/roll.
Wire thickness 0,45mm.

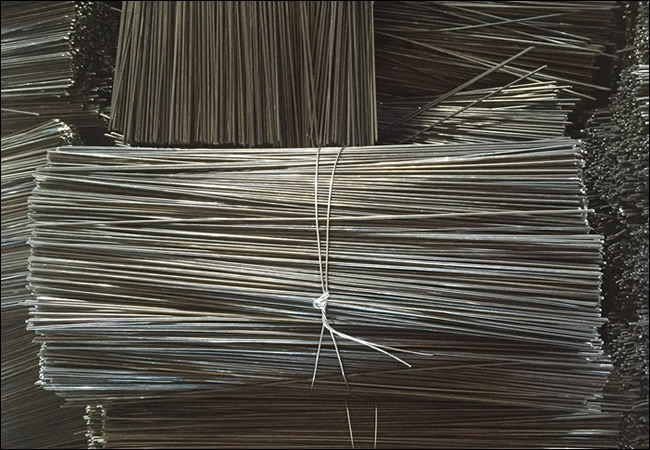

Loop Tie Wire

16 gauge annealed and galvanized loop tie wire, cut and double end looped
Black annealed double loop tie wires,16 gauge, galvanized or black annealed finish, packed in bags of 500 or 2500. Also pvc coated double loop tie wire, made of iron wire, galvanized, plastic coated, use to tie linen bags.

Mild Steel Bar Ties

8 inch double loop galvanized bar ties, 16 guage, 8", 10", 12" bar ties, black annealed and pvc coated finish.
Popular sizes:

Gauge Length Package
16 6" 5,000pcs/bag
16 16" 2,500pcs/bag
16 24" 2,500pcs/bag

Electro Galvanized Binding Wire

16 gauge electro galvanized steel binding wire
Diameter 2.96 mm, Zinc Coat Min 15 GSM, in coil weight 500 Kg
Tensile strength: 450 - 550 MPa

Electro galv preference:
.109" +/- .003" 212-222ksi
.132" +/- .003" 210ksi min
.80oz sq/ft coating
22" steel reel
24.5" steel reel
630mm steel reel

Popular sizes:
Electro galvanized steel binding wire 16 SWG, in 1.626mm diameter
Material: Low carbon steel wire, with zinc coating 10-12 g/m2

Hot Dipped Zinc Plated Galvanized Wire - Fencing Wire

Hot dipped galvanized wire for chain link fence manufacture
Zinc plated steel wire with high tensile strength for chain link fence production, wire diamter 4mm, resistance 600 to 800 newton per mm square. SAE1006 resistance 400/500 N/mmq zink plated wire, PVC coated steel - 30% (1.8/2.6; 2.0/3.0; 2.4/3.5mm).

Galvanized Tie Wire

25kg rolls tie wire 16 gauge
Tie wire, GI, pvc coated, 16 gauge, 7 kg/roll, 1.5mm (300n/mm2) zinc coated tie wire. Wire ties in plastic spools of 25 meters each or in 25kge rolls. Can be made black coated 16 gauge (1.6mm) tie wire.

Coil Wire

Galvanized binding wire, soft quality, coil type, made of carbon steel,cold-drawn and annealed, wire dia 3mm, in coil of 25kge, 50Kg, tensile Strength 30-55 kg/mm2.
BWG 14 x 50 Kg/Coil
16 x 25 Kg/Coil
18 x 25 Kg/Coil
20 x 25 Kg/Coil
22 x 25 Kg/Coil
24 x 25 Kg/Coil

Spool Wire

20kg spool wire, electro galvanized

Galvanized spool wire, electro galvanized wire 0.46mm 20kg/spool, also following sizes:

18 gauge, 1.24 mm, spool with 50kg and 1kg
16 gauge, 1,65mm, 50kg spool wire
14 gauge, 2,11mm, 50kg spool wire
12 gauge, 2,77mm, 50kg spool wire
10 gauge, 3,40mm, 50kg spool wire

Galvanized iron wire spool with the following details:
- OD: 47mm
- ID: 12mm
- Width (incl. spool): 25mm
- Wire diameter: 0,4mm

Annealed Wire

Mild steel black annealed wire 2.052 mm,1.628 mm, 1,3 mm in diameter, in big coils of 500 - 700 kg, with breaking strength of 350 - 380 N/sqmm.

10kg small coil black annealed tying wire:
1.47mm wire diameter
45000 to 55000 PSI
20% to 30% elongation

Barbed Wire

12 gauge barbed wire, hot dipped galvanized, for perimeter fencing
Galvanized Iron Barbed Wire, 1.5mm, barb spacing 5'', wire gauge SWG10#, SWB12.
Double strand, 4 point, heavy galvanised steel barbed wire
Pack size: Per roll

Plastic Coated Iron Wire

Plastic covered green chicken wire, made of iron wire. PVC wire is widely used in fencing, tying, nose masks, floral wire.

Concertina Wire

BTO-22 blade Concertina razor wire hot dipped galvanized
Concertina razor wire - diameter 730 mm, concertina razor wire - diameter 980 mm
Material - galvanized steel (wire min. Z70, blades min. Z180)
54-56 rolls per wire;
Blade type BTO-22
Style:Barbed Tape Concertina
Steel zinc plated, coil diameter 980mm, 54 loops, w/5 clips to each loop, maximum installed length 15 metres

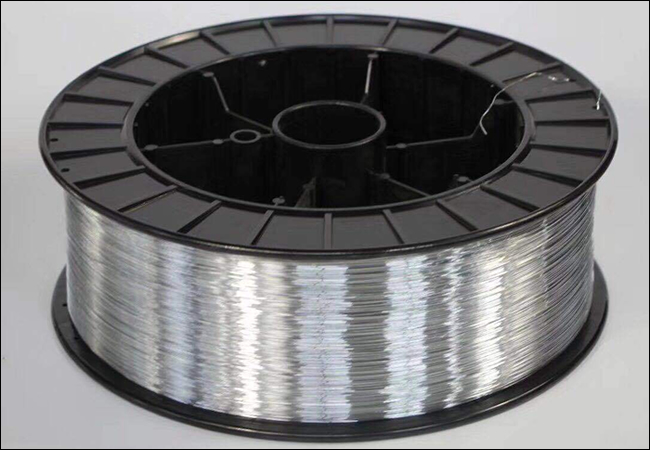

Stitching Wire

Soft galvanized stitching wire, stapling wire
Stitching wire soft galvanized
Size: 0.089*0.63 mm tensil 1235/1390 n/mm weight 3.5 kgs
Hardness: 318-420 h.v
190,000 gpa for steel, elongation: 1.3%
Degree bend test 6-8 bend to failure
Carbon: 0.35/0.40
Maganese 0.50/0.70
Silicon 0.18/0.28

Armouring Cable Wire

BS 443 standard armouring cable galvanized wire
6.5mm SAE1006 for Cable Armouring Wire, hot dipped armouring galvanised wire, BS 443 standard, 0.9mm,coil weight: 1000kg.

Staple Wire

Flat staple wire, 0.8mm x0.6mm
Flat staple wire, galvanized, in 0.8 x 0.6 mm
Packing: 2 kg spool, each spool pp warping.; cartoon box. international seaworthy packing.

5mm High Tensile Strength Galvanized Steel Wire

Overhead stay wire, stranded
Round wire, in big coil package, for weld mesh manufacture
Material: Galvanized Steel Wire
